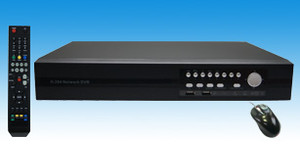

4 - Channel DVR LS-9204H

SKU:
LS-9204H
$150.00 - $300.00
(No reviews yet)
Weight:
5.00 LBS
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Current Stock:
Adding to cart… The item has been added
LS-9204H
Features




*Use the standard H.264 video compression format stream lower, high quality, longer recording time, taking up less bandwidth resources


*GUI OSD interface, USB Mouse controller, more intuitive, easier to use for user-friendly


*Support CIF recording resolution,6 image quality adjustable


*Hexaplex operation simultaneously: Preview, recording, playback, and network live, backup, playback



*Multiple record mode: Auto、timer、motion recording mode



*Recording playback support: Normal play、Speed play、Fast back play、Manual single-frame slow play



*Support drag the progress bar can be targeted playback time directly


*Support Multiple channel playback at the same time(Support 4CH playback simultaneously)


*Support Network function: one IE browser centralized monitoring and SNS Software for multiple DVR (up to 20 DVR simultaneously)


*Support DHCP, DDNS, PPPoE and NTP network service


*Supports remote surveillance up to 10 users simultaneously via the internet Explorer web browser


*Support more than 17 kinds protocol of the PTZ control


*Supports Multiple backup mode: USB flash drive and network backup


*Support pre-alarm recording (before 10 sec),not lose any suspicious screen


*Support one SATA HDD, unlimited for the capacity


*Support 1ch audio input


*Support remote view by Mobile phone


*Support VGA output


*Support IR remoter controller


*System auto recovery to power after power reconnected, and return to the pre-power-down state

colour.bmp high-resolution.bmp day-night.bmp weatherproof.bmp led.bmp japan-lens.jpg zoom.bmp
Specifications
Model LS-9204H
Compression Format H.264
Video System NTSC / PAL
Video Input/Output BNC 4CH In/ 1CH BNC Out/ 1CH VGA Out
Alarm Input/Output Alarm 4CH In/ 1CH Out
Audio Input/Output 4CH audio input, 1CH audio output (RCA)
Preview resolution 720 x 480 ( NTSC ), 704 x 576 ( PAL ); Playback resolution:4 x D1
Real time recording support CIF:352×240 with 240 Fps (NTSC); 352×288 with 200 Fps (PAL)
D1:720×480 with 120 Fps (NTSC); 704×576 with 100 Fps (PAL)
Video Compression Rate CIF Resolution, 3 grade available
Audio Compression 8kHz*16bit, ADPCM
Motion Detection PAL 13*10(130); NTSC 13*8(104) 4 grade available
Communication Interface

1pc RJ45 10M/100M Ethernet, 1pc RS232 port, 1pc RS485 port

Hard Disk 2 SATA Hard Disc interface
USB port 2pc (Mouse port and USB2.0 port
Network Protocol TCP/IP、PPPOE 、DDNS and NTP
VGA port 1pc(optional) Resolution:800×600,1024×768
Special Feature Support GPRS/CDMA/EDGE/3G mobile phone view
Power Supply 12V/3A
Working Temperature 0℃--+55℃
Working Humidity 10%--90%
Dimension L382 x W258 x H60mm
