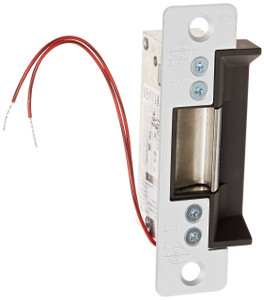

7110 Electric Strikes (for hollow metal and wood jambs)

Hover over image to zoom

  • Adams Rite 7100 Electric Strikes
  • Adams Rite 7100 Electric Strikes
Adams Rite
$202.00
SKU:
7110
Weight:
1.00 LBS
Shipping:
Calculated at checkout

 Product Description

Description: 7110 Electric Strike with 7-15/16” faceplate and 7111 Electric Strike with 10-1/4” faceplate are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal, wood and aluminum door jambs.

Function: Replaces earlier 002, 7510, or 7810 electric releases in either metal or wood jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-5/8”.

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7110 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number (see catalog page).

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Faceplate for 7110 measures 1-7/16” x 7-15/16”. 7111 faceplate measures 1-7/16” x 10-1/4”. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Current Draw/Amps:

Volts AC Intermittent DC Continuous
12 1.42 0.33
24 0.74 0.17

Options: Available with two monitoring signal switches which sense whether latch bolt is in strike and whether strike jaw is blocked. Choice of voltage in AC and DC for intermittent or continuous duty. Specify assembled for either fail-secure (locked when unpowered) or fail-safe (locked when powered) operation, but can be field converted to the other mode. Model 7110 and 7111 are identical except for their faceplate length.

4603 Rectifier – converts AC to DC, installs in low voltage line between transformer and strike. Rated 2 amps (200 PIV)

4605 Transformer – converts 120VAC to 12/24 VAC. Rated 40 Volt-amp output assures plenty of power for strike release. Patented mounting bracket fits in knockout hole of standard junction boxes.

4606 Transformer – Plug-in version for standard wall outlet.

For more information please see POWER.

Standard Package: Individually boxed with mounting screws, mounting clips, and adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8”.



Related Products: When purchasing this product, please consider the following related products, available separately:

Options Power Deadlatches

Lip extensions available separately.

Power supplies and power transfer devices such as 4603 Rectifier, 4605/4606 Transformer, Piezo Horn audible indicator and PS-1 available separately.

4500 and 4900 Series Deadlatches available separately.

Note that 4700 Deadlatch is discontinued and replaced by 4900 Deadlatch.

 Warranty Information

Limited Warranty
Products sold under the Adams Rite brand in the United States
of America are warranted free from defects in workmanship and
materials under normal use and service.
This warranty does not cover defects or damage arising from improper
installation, lack of or improper maintenance, improper storage, shipping
and handling, corrosion, erosion, ordinary wear and tear, misuse, abuse,
accident, unauthorized service, or use with unauthorized non-Adams
Rite products or parts.
This warranty is void if any modification is made to the product,
regardless of whether the modification causes or contributes to the
alleged defect. All modifications are made at the risk of the party
making the modification.
Should any defect of manufacture (in material or workmanship) occur
in its products, Adams Rite, upon prompt notification and proof to its
satisfaction that the product was defective in manufacture for the use
intended by Adams Rite, will at its option, exchange the product, repair
the product, or refund the price charged by Adams Rite, FOB factory
within the stated time frame listed below.

All mechanical products for five (5) years from date of manufacture

Ultraline 7400 Electric Strikes for five (5) years from date
of manufacture

All electrical products for three (3) years from date of manufacture,
with the exception of the exit devices with the SE option

Exit devices with the SE option for one (1) year from date
of manufacture. Adams Rite recommends that for optimal
performance all exit devices with the SE option are installed and
powered using PS-SE power supplies. Installing SE exit devices
with PS-SE power supplies extends the warranty to five (5) years
from date of manufacture.
